DPP-260 Automatic Blister Packing Machine

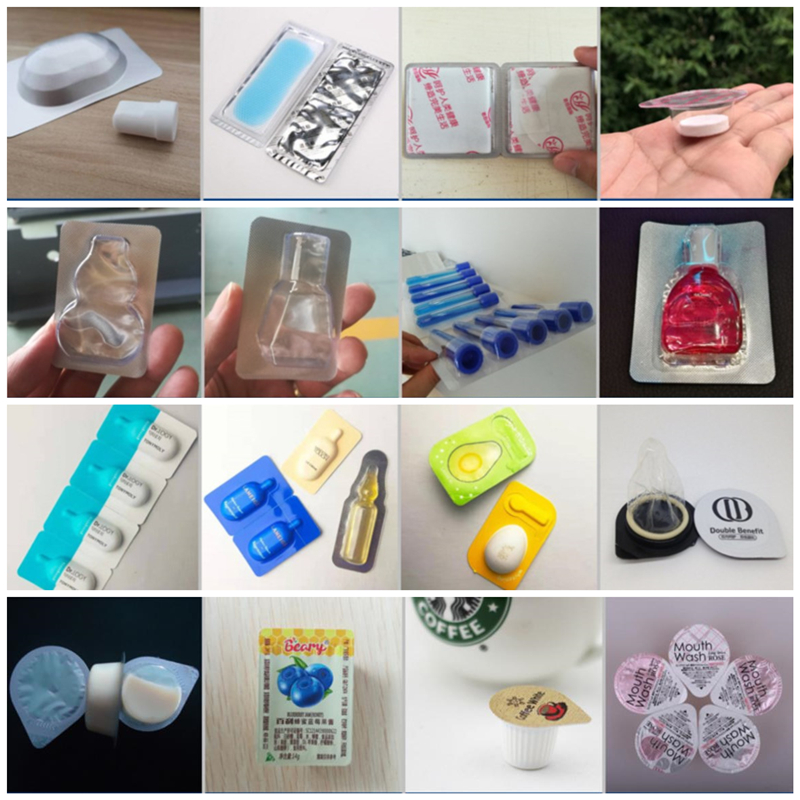

Machine suitable for capsule, tablet, large honey pill, candy, liquid, paste, disposable syringe and special-shaped products in pharmaceutical, health care products, food, cosmetics, medical equipment and other…
- Department
- International Trade Department
- Phone
- +86-577-63032858 · +86-577-63032878 · +86-577-63032198
- yanfeng@yanfeng.cn
Machine suitable for capsule, tablet, large honey pill, candy, liquid, paste, disposable syringe and special-shaped products in pharmaceutical, health care products, food, cosmetics, medical equipment and other industries. The machine uses microcomputer programming control, frequency control, touch panel operation, high degree of automation.
Instructions for liquid filling
1, using plunger type metering pump filling, high precision; The structure of the pump adopts a quick-connecting disassembly mechanism, which is easy to clean and disinfect.
2, PLC control system, color touch screen display.
3, the filling needle is equipped with anti-drip device.
4. Filling accuracy ±05% filling two routine: 5-25ml (capacity customized by customers)
5, the machine shell and contact liquid parts are made of stainless steel material, fully in line with GMP standards.
Production technology:
All the materials and processing processes of this machine refer to the World Health Organization Pharmaceutical Production and Quality Management Practice, in line with the relevant provisions of the GMP standard.
Equipment material: host: carbon steel aluminum alloy shell: SUS304 stainless steel feeder: SUS316 stainless steel
Control mode: man-machine integrated industrial computer automatic (PLC) control system
Production standard: YYTO-2008 blister packing machine manufacturing standard, in line with national GMP standards
Equipment certification: ISO9001:2000 quality system certification, CE certification
| Technical parameter | |
| Model | DPP-260 |
| Speed | 15-25pcs/min |
| Material | PTP ALU ：Width 260mm, Thick：0.02-0.03mm； Forming material：Width 260mm, Thick0.50-0.15mm |
| Adjustable range of travel | Traction stroke：30-140mm Punching：0-100mm Batch number：0-50mm Forming：0-100mm Heat seal: fixed reference point |
| Maximum forming depth（mm) | 35mm |
| Maximum molding area（mm2) | 250×130×35mm |
| Power supply | 380V 50Hz |
| Total Power（KW） | 5kW |
| Compressed air pressure（MPa) | 0.5-0.7MPa |
| Compressed air consumption（m3/h) | ≥ 0.22 |
| Cooling water consumption（m3/h) | Ordinary tap water circulation cooling. |
| Noise（dB) | 75dB |
| Overall dimension（L×W×Hmm) | 4200×650×1640mm |
| Weight（kg) | 1500kg |
| Frequency modulation capability of motor | 20-50Hz |
