Paper Roll Die Cutting Machine
Model MB-980 Max Paper Width 850mm Speed 200-300 strokes/min Power source 5kw 380V 50/60hz Control System PLC+Servo motor Weight 2100kgs Dimension 3500*1500*2000mm The MB-CQ-850 paper roll die cutting machine can…
- Department
- International Trade Department
- Phone
- +86-577-63032858 · +86-577-63032878 · +86-577-63032198
- yanfeng@yanfeng.cn
| Model | MB-980 |
| Max Paper Width | 850mm |
| Speed | 200-300 strokes/min |
| Power source | 5kw 380V 50/60hz |
| Control System | PLC+Servo motor |
| Weight | 2100kgs |
| Dimension | 3500*1500*2000mm |

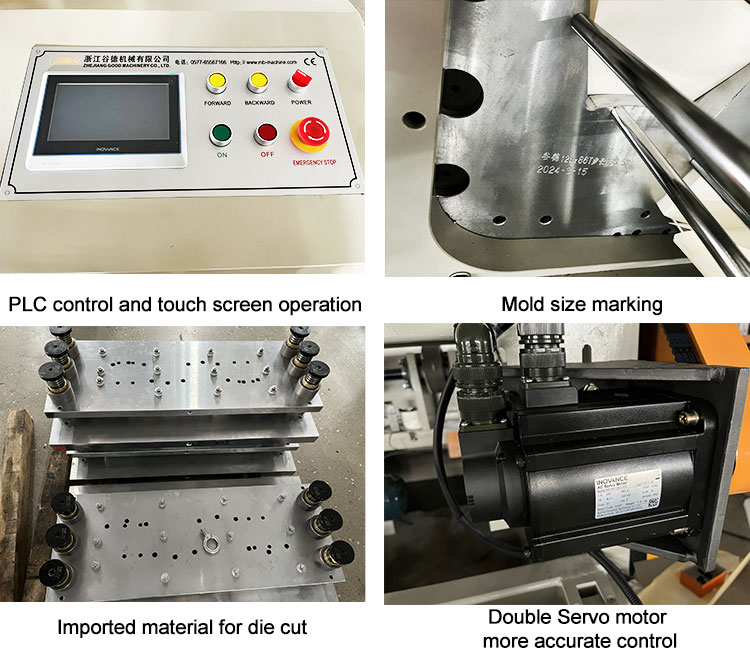

The MB-CQ-850 paper roll die cutting machine can work according to the icon sensor or by setting a certain length in the program in the PLC controller with touch screen.The paper roll die cutting machine has high speed and good performance by changing molds, and is a good choice for die and die cutting of different sizes of cup wallpaper or aluminum foil. High precision and low rates, ideal for making large quantities of paper cups and paper fans.
The mold material of MB-CQ-850 paper roll die cutting machine is imported from South Korea, which has long service life and good performance. The percentage of waste is about 10-15%.

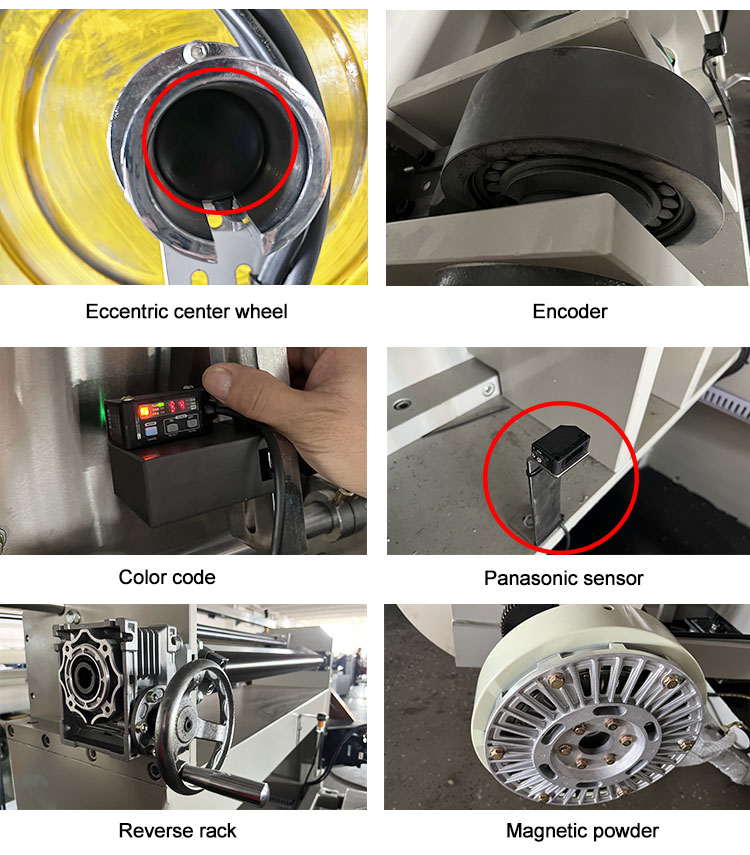

1.Dual servo motor control enables the machine to cut with higher precision and accuracy.
2.The reverse frame can be manually adjusted in height, making it more convenient for staff to operate.
